Fiber Lasers Cleaning Machine

Handheld Laser Cleaning Machine for Rust Removal

Cleaning Width:

1-300mm

Fiber Length:

10m (15m Optional)

Laser Source:

Raycus/MAX/BWT/JPT/IPG(Optional)

Cleaning Type:

Environmentally friendly/Contactless Cleaning

Delivery Time:

1-7 Days (Stock machines in some countries)

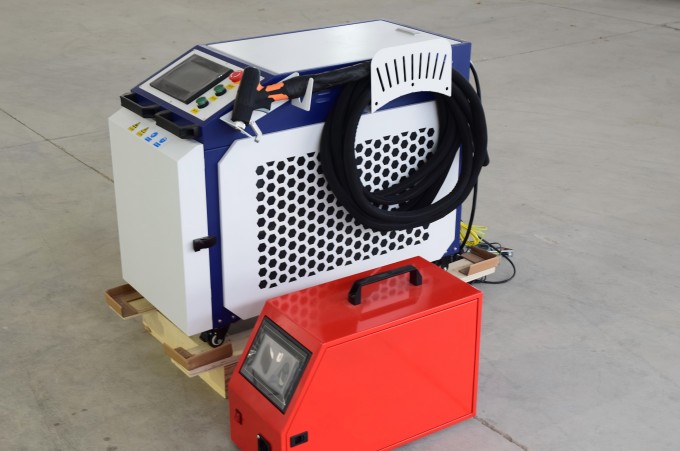

Handheld Laser Cleaning Machine for Rust Removal Description

What is laser cleaning?

Laser cleaning is a technology that uses high-energy-density laser beams to remove contaminants, coatings, or unwanted materials from solid or liquid surfaces. Its academic name is “Laser Ablation“.

Specifically, laser cleaning achieves cleaning in the following two ways:

1. Vaporization or sublimation of contaminants: The laser energy is focused on the surface of the contaminant, causing it to absorb energy and quickly heat up and vaporize, thereby separating from the substrate.

2. Destroying the bonding force between the contaminant and the substrate: The high-energy laser pulse can destroy the chemical bond or physical adhesion between the contaminant and the substrate, thereby removing the contaminant.

M.RISE offers unmatched efficiency and precision in rust removal and surface treatment, ensuring faster and safer operation.

This machine is used to remove coatings, plating, paint, rust, oxides, rust, grease, dust, stains, glue residues from metal surfaces. Due to non-contact cleaning, the top layer of the surface is easily cleaned, and laser ablation leaves the underlying substrate intact, resulting in a clean, fresh and pure surface.

This cleaning machine is equipped with a maximum of 15m fiber optic cable, and non-contact operation can easily, freely and quickly clean hard-to-reach, uneven and fragile surfaces wherever needed.



Handheld Laser Cleaning Machine for Rust Removal Video

handheld laser cleaning machine (4)
Play Video about handheld laser cleaning machine (4)

Machine Details

laser cleaning machine details

Operator Safety

Laser cleaning is an innovative industrial surface treatment method that minimizes the risk of silicosis in personnel. Traditional cleaning methods cause damage to the operator’s eyes, respiratory system, and skin.

◆  We offer Class IV laser cleaning systems that meet the safety standards set by the Center for Radiological Health (CDRH).

handheld laser welding machine detail 1

Reasonable Space Design

The laser cleaning machine for rust removal is compact and equipped with wheels for easy mobility;

◆  Simple working environment requirements, safe, stable and maintenance-free;

◆  No consumables and long service life.

handheld laser welding machine detail 2

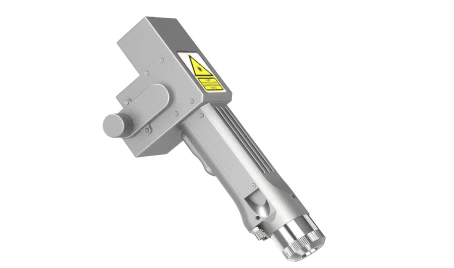

Light Cleaning Head

The oscillating laser cleaning head is easy to use, lightweight and comfortable to hold;

The scanning range can be adjusted from 1mm to 300mm according to your needs for cleaning different surface areas.

laser welding machine laser source MAX

Laser Source

The welding machine can be equipped with MAX, Raycus, JPT, BWT and other lasers, which can be selected according to different budgets;

Stable high-power operation with adjustable pulse parameters for precise control of heat input;

Fiber laser transmitter lifetime exceeds 100,000 hours.

laser welding machine controller

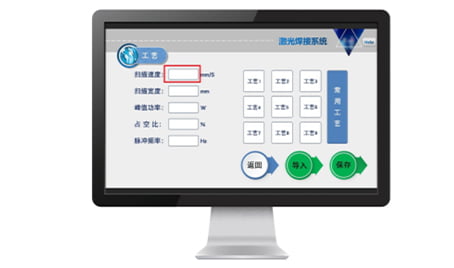

Removable 3D laser head

The system provides six cleaning modes, which can be switched freely according to the actual scene requirements. You can choose precise location and precise size for cleaning;

All parameters are visualized, the machine status is monitored in real time, and faults are eliminated in advance, which is convenient for troubleshooting and problem solving, ensuring stable operation of the system.

laser welding machine fiber laser cable

10m Length Fiber Cable

Standard 10-meter high-quality optical fiber enables flexible cleaning over long distances and large areas, reducing operational restrictions;

Optional 15m length for easy operation.

Machine Parameter

No.

Item

Parameter

1

Machine Model

MR-1500/2000/3000HC Handheld Laser Cleaning Machine

2

Cleaning Size

1-300mm Width

3

Laser Source

Raycus/MAX/BWT/IPG Optional

4

Laser Power

1500w/2000w/3000w

5

Cooling Type

Water Cooling

6

Working environment temperature

5-40℃

7

Storage environment temperature

-10-60℃

8

Power Supply

220V/50Hz, 220V/60Hz, 380V for 3kw

9

Laser Grade

Class 4

Samples

Laser cleaning machine samples

Warranty&Service

1. Warranty for 3years of whole machine;.

Laser source, Air compressor, Stabilizer warranty for 2 years;

If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.

2. Whole lifetime and 24 hours online service.

Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.

3. The machine has undergone strict quality inspection and debugging before shipment.

And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.

4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.

5. We provide the consumable parts at an agency price.
