2024 Best Tube Laser Cutting Machine with Loading System MR-6016S
Cutting Size:
L=6.3m/φ10-160mm
Laser Power:
1kw-6kw
MAX Speed:
140m/min
Price:
$32500-$48800
Option Size:
L=6.3m/φ10-235mm, L=7.5m/φ10-235mm
Product Presentation
Tube Laser Cutting Machine with Loading System MR-6016S Description
MR-6016S laser pipe cutting machine is a highly cost-effective and powerful cutting machine.
The machine adopts a side-mounted bed and a movable front chuck to ensure that the cutting tail material is less than 50mm, saving metal pipe materials to the maximum extent.
At the same time, the machine is equipped with a semi-automatic loading device, which also saves manual loading time and labor costs. Becoming the most ideal choice for cutting small diameter pipes.
Tube Laser Cutting Machine with Loading System MR-6016S Video
Machine Details
Professional Tube Cutting Controller and Nesting Software
◆ Nesting of various shape tubes all at once with minimum waste.
◆ A control system specially developed for pipe processing, supporting high-precision and high-efficiency cutting of square pipes, round pipes, runway-type and oval-shaped stretched pipes, as well as angle steel and channel steel.
Movable Front Chuck of Pneumatic
◆ ≤ 50mm ultra-short cutting tail tube, Stable clamp of tail tube, High tails cutting accuracy
◆ This chuck uses a cylinder to directly output, with high mechanical efficiency, small energy loss, large output clamping force, and stable clamping force.
45° inclined bed
◆ The bed structure is made of profiles and steel plates that are integrally welded together. The bed structure adopts a 45° inclined-hanging bed, which has a compact structure and takes up little space.
Gantry structure beam
◆ The gantry structure has a larger contact area, and the force is distributed more evenly when the equipment is working. The advantage is that it is more stable and reliable, can effectively avoid resonance phenomena during high-speed cutting, and can ensure the stability of cutting accuracy.
Removable 3D laser head
◆ Various tube shapes cutting, Angle steel, H steel, triangle ect.

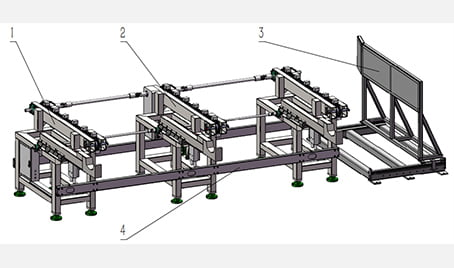

Semi loading device
◆ Auto loading, Save production time, Save labor cost
High-precision Transmission system
◆ High-precision transmission structures such as grinding-grade helical gear racks, linear guides, and ball screws are used

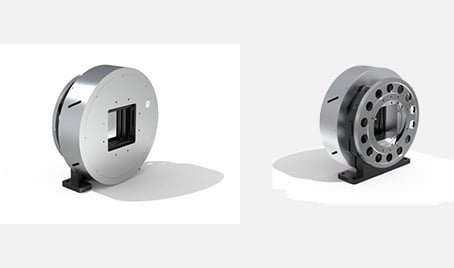

Full Stroke Chuck
◆ Auto centering, Auto clamp, Pneumatic
Machine Parameter
No.
Item
Parameter
1
Machine Model
MR-6016S/6020S
2
Tube Cutting Size
L=6m, φ10-160mm/φ10-235mm
3
Repeat Positioning Accuracy
±0.1mm
4
Accuracy Of Positioning
±0.1mm
5
Max Movement Speed
140m/min
6
Max Rotary Speed
140r/min
7
Max Acceleration
1.5G
8
Laser Power
1kw-6kw
9
Chuck max Loading
150kg/300kg
11
Machine Size
8900*3200*2170mm
12
Machine Weight
4800kg
Samples
Packages
Warranty&Service
