Coil-fed Laser Blanking Lines
Automatic Coil Laser Cutting Production Line
Cutting Size:
3000*1500mm
Laser Power:
3kw-20kw
MAX Speed:
150m/min
Price:
$95000-$850000/set
Option Size:
4000*2000mm, 6000*2000mm, 8000*2500mm, 12000*25000mm
Product Presentation
Machine Description
Automatic Coil Laser Cutting Production Line with uncoiling, leveling, and high-speed cutting. Improve accuracy, reduce waste. Book a demo now.
1. Integrated Coil Processing

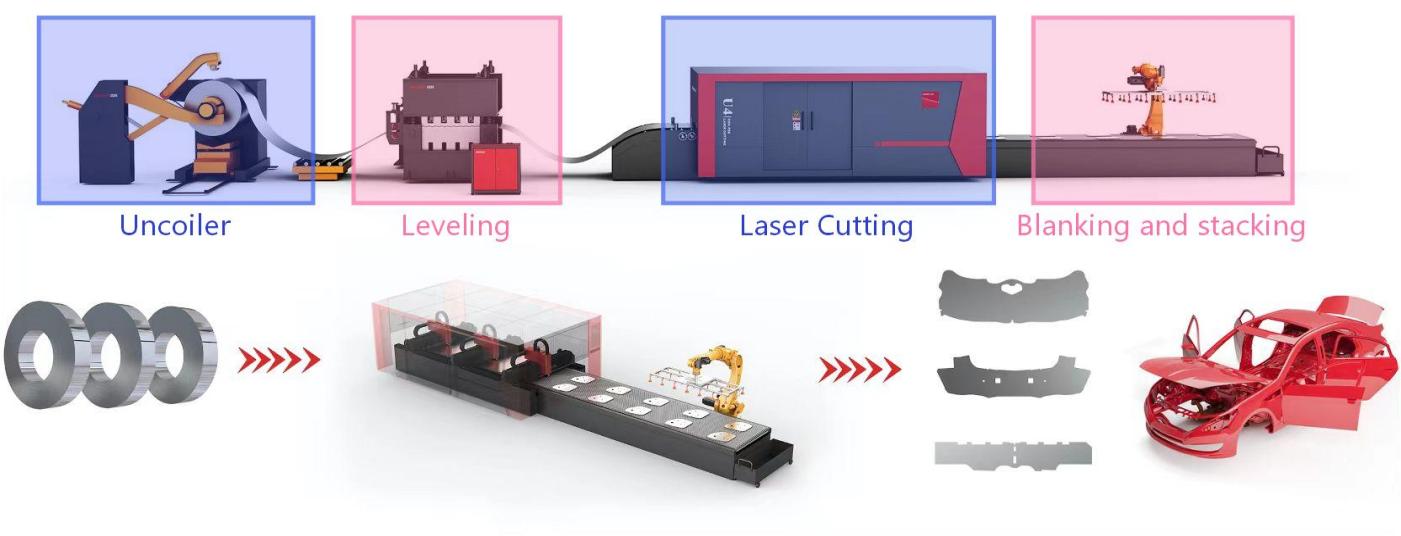

The line integrates decoiling, leveling, material feeding, fiber laser cutting, and output conveying. Unloading, sorting, and stacking arrangements depend on the selected configuration and production requirements.
2. Coil Feeding Matched to Your Production Needs
Decoiling and feeding arrangements are selected according to coil width, coil weight, material specifications, and production requirements. The number of decoiling stations and the coil changeover method are confirmed in the project quotation.
3. High Cutting Accuracy
Leveling helps improve coil flatness before laser cutting. Finished-part accuracy and edge quality depend on the material, thickness, part geometry, and cutting parameters. Please provide your drawings and tolerance requirements so the proposed configuration and acceptance criteria can be reviewed.
4. Reduced Cost per Part
Nesting software helps improve material utilization by arranging parts within the available coil width. Laser cutting forms part contours without dedicated blanking dies. Actual material usage and processing costs depend on part geometry, material specifications, and the selected configuration.
For HVAC, automotive components, and sheet metal fabrication, a coil-fed laser cutting line combines coil preparation and laser cutting in one production workflow. The appropriate configuration depends on your material, part geometry, required output, and unloading requirements.
Line Scope and Integration Options
Core Coil-Fed Laser Cutting Line
The core line combines decoiling, leveling, material feeding, fiber laser cutting, and output conveying. Equipment selection depends on the coil material, thickness, width, weight, and required part geometry. The final scope of supply is confirmed in the project quotation.
Unloading, Sorting and Stacking Options
Unloading, sorting, and stacking arrangements are selected according to the machine series, part dimensions, surface requirements, and production workflow. Please specify your required level of automation when requesting a quotation.
Downstream Bending Integration
Integration with a downstream panel bender can be evaluated for suitable projects. Part geometry, tooling requirements, material transfer, and cutting-to-bending cycle times must be reviewed before confirming the line configuration.
This page covers coil-fed sheet metal laser cutting and blanking. Welding automation and aluminum-profile machining are outside the scope of the line described here.
Different configurations suit different coil formats, production requirements, and unloading arrangements. Use the comparison below to identify a suitable starting point for your project.
Scroll horizontally to view all specifications on smaller screens.
| Configuration | Coil Thickness (mm) | Coil Width (mm) | Decoiler Capacity (t) | Laser Power (kW) |
|---|---|---|---|---|
| Slit-Coil Cutting | 0.3–3.0 | 200–1,250 | 5–20 | 1.5–6 |
| Compact Coil Cutting | 0.6–1.2 | Up to 1,500 | 10–15 | 1.5–6 |
| Coil and Sheet Cutting | 0.6–20.0 | Up to 2,150 | 10–35 | 3–60 |
| Multi-Head Coil Cutting | 0.6–20.0 | 300–2,150 | 10–35 | 3–30 |
| Suspended Coil Cutting | 0.6–3.0 | 300–2,100 | 10–30 | 3–12 |
These figures represent available configuration ranges. Material grade, thickness, coil width, coil weight, and laser power must be considered together. Maximum values are not necessarily available in the same configuration. Decoiler capacity refers to coil handling, not the load capacity of the cutting table.
Choose By Your Production Requirements
| Configuration | Main Features |
|---|---|
| Slit-Coil Cutting | Processes fixed-width slit steel coils through decoiling, leveling, cutting, and conveyor output. |
| Compact Coil Cutting | A compact layout for processing standard steel coils, with conveyor output for unloading. |
| Coil and Sheet Cutting | Combines coil processing with a single-sheet cutting function and nesting software. |
| Multi-Head Coil Cutting | Offers multi-head synchronous cutting or dual-head asynchronous configurations. Intelligent sorting and unloading are optional. |
| Suspended Coil Cutting | Uses suspended cutting and belt conveyor output, with scrap collection. Designed to reduce underside contact and scratching during processing. |
Get Help Selecting a Configuration
Tell us your material grade, thickness, coil width, coil weight, and required part dimensions. If available, send a part drawing and your target output so we can discuss a suitable line configuration.
Machine Working Progress
Machine Video
Machine Details
Heavy Duty Uncoil Rack with High Loading-bearing Capacity
◆ Cantilever structure with stress-relief annealing treatment, ensuring high frame strength;
◆ Stable operation with variable frequency speed regulation for smooth material feeding;
◆ Hydraulic telescoping design enables flexible operation.
Heavy-duty Roller Leveling
◆ Levels the coil material before it enters the laser cutting unit;
◆ Helps reduce coil curvature and improve material flatness;
◆ Works with the feeding system to prepare material for downstream cutting;
◆ Leveling requirements depend on material grade, thickness, width, and incoming coil condition.
High Speed Laser Cutting Unit
◆ Integrates fiber laser cutting with the coil feeding system;
◆ Laser power and cutting parameters are selected according to the material, thickness, and production requirements;
◆ Coordinates material feeding and cutting according to the selected line configuration.
Output Conveying and Unloading Options
◆ Conveys material or cut parts from the cutting area according to the selected machine configuration；
◆ Unloading arrangements are selected based on part dimensions, surface requirements, and production workflow;
◆ Sorting and stacking options vary by machine series and are confirmed in the project quotation.
Machine Parameter
No.
Item
Parameter
1
Brand
MRISECNC
2
Series
MRI Series
3
Model
MRI-CBL-2040
4
Category
Coil-fed Laser Blanking Line
5
Manufacture
Jinan M.RISE Machinery Equipment Co.,Ltd.
6
Working Size
4000*2000mm
7
Maximum Acceleration
1.5G
8
Positioning Accuracy
±0.03mm
9
Repeat Positioning Accuracy
±0.02mm
10
Laser Power
6kw, 12kw, 20kw
11
Max Loading
12000kg/worktable
Samples
Packages&Shipping
Warranty & Technical Support
1. Two-Year Warranty from Acceptance
M.RISE provides a two-year warranty for the complete coil-fed laser cutting line, starting from the date of completed acceptance. Consumables and wear parts, including protective lenses and nozzles, are excluded from warranty coverage.
2. Shipping Covered for Warranty Replacement Parts
M.RISE covers the shipping costs for replacement parts sent to the customer under warranty. When reporting a fault, please provide the machine model, serial number, and relevant photos, videos, or alarm messages to help identify the issue and the required parts.
3. 24/7 Technical Support
M.RISE provides round-the-clock technical support with prompt responses to service requests. Contact us by WhatsApp or email for assistance with equipment operation, fault diagnosis, and maintenance. Repair arrangements depend on the issue identified and the support required.
4. Installation, Operation & Maintenance Guidance
Operating manuals and instructional videos are provided to support machine installation, operation, and routine maintenance. Any on-site installation, commissioning, or operator training requirements, including the service scope and associated costs, should be agreed in the project quotation.
5. Spare Parts & Consumables Support
Contact M.RISE for replacement parts and consumables suitable for your coil-fed laser cutting line. Please provide the machine model and part number, where available, so that compatibility, availability, pricing, and delivery arrangements can be checked before ordering.
GET A QUOTE
Find the Right Coil-Fed Laser Cutting Line
Tell us your material, thickness, coil width, and coil weight. Share your part dimensions and production needs so we can help you select a suitable line configuration.
