Fiber Laser Cutting Machine For Sale
OPEN TYPE Metal Sheet Fiber Laser Cutting Machine
Cutting Size:
3000*1500mm/2000*4000mm/2000*6000mm Option
Laser Power:
1kw-12kw
Laser Source:
MAX/Raycus/IPG/BWT
MAX Speed:
1300mm/s
Wortable Capacity:
900KGS
Product Presentation
OPEN TYPE Metal Sheet Fiber Laser Cutting Machine MR-1530S Description
MR-1530S is the basic fiber laser cutting machine, equipped with 1kw-12kw laser, using the best Cypcut cutting system with nesting software in China, which can quickly and accurately complete the cutting work. It is the entry-level machine of choice for cutting metal materials.
Highly desirable laser metal-cutting unit for a variety of metal fabrication purposes with versatile customizability.
What is Included?
Industrial Fiber Laser Water Chiller, Transformer, Stabilizer and Exhaust Fan;
Free On-site Installation and Training, Free On-line support for installation and training;
3-Year Warranty and Life-time Support
OPEN TYPE Metal Sheet Fiber Laser Cutting Machine MR-1530S Video
OPEN TYPE Metal Sheet Fiber Laser Cutting Machine Details
Machine base-High Strength
◆ The mortise and tenon structure welded machine bed improves rigidity,
◆ The machine base height can be customized to be reduced by 100mm, and the bed height is reduced to facilitate front and side loading and unloading.
◆ After stress annealing and natural aging treatment, to eliminate internal stress and keep the bed in good condition. Mechanical properties, with good tensile properties, toughness and hardness
Gantry-Aviation aluminum
◆ The whole beam of metal plate fiber laser cutting machine is processed by T6 heat treatment process, so that the beam can obtain the highest strength.
◆ Solution treatment increases the strength and plasticity of the beam, optimizes its weight reduction, and accelerates the movement speed
Intelligent central control lubrication
◆ Lubrication time and times can be adjusted through the central control system, comprehensive multi-point lubrication for guide rails, sliders, lead screws, racks, etc., and automatic return to collect waste lubricating fluid.
Intelligent control system
◆ General functions include graphics processing, parameter settings, custom cutting process editing, nesting, path planning, simulation, and cutting process control.
◆ Built-in safety features and a user-friendly interface make it easy to operate and maintain, minimizing downtime and maximizing your business uptime；
◆ Contains a massive production database, from which users can call cutting processes when cutting plates of different materials and thicknesses
◆ It has a variety of thick plate cutting processes, such as air cutting, countersinking, perfect finishing (PFC), lightning punching, etc.
Auto Focus laser head
◆ The laser head has a built-in motor drive unit, and users can continuously adjust the focus through program settings to quickly punch thick plates and automatically cut plates of different thicknesses and materials.
◆ The special design of optics and water cooling allows the laser head to work continuously and stably at high power for a long time.
Famous Brand Laser Source
◆ It is a high-efficiency, high-beam-quality single-module fiber laser. Mainly used in piercing, cutting and welding fields. The advantages of MAX laser source is high beam quality, high power, high efficiency, high reliability and long lifetime.

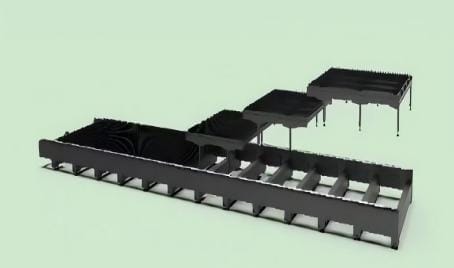

Modular Worktable
◆ Reduce maintenance costs and ensure safety and convenience.
Smoke and Dust Removal
◆ Independent control of dust removal in different zones enhances smoke exhaust effect。
Machine Parameter
No.
Item
Parameter
1
Working area
3000x1500mm
2
X-axis travel
1550mm
3
Y-axis travel
3050mm
4
Z-axis travel
100mm
5
X,Y positioning accuracy
±0.05/1000mm
6
X,Y repeat positioning accuracy
±0.03/1000mm
7
Acceleration
1.2G
8
Max running speed
80m/min
9
Table load
900kg
10
Machine size
4700×2200×1600
11
Laser source
IPG/MAX/Raycus
Cutting Parameter
| Metal | 1kw | 1.5kw | 2kw | 3kw | 6kw | 12kw | 20kw | 30kw | 40kw |
|---|---|---|---|---|---|---|---|---|---|
| Stainless Steel | 4mm | 5mm | 6mm | 8mm | 14mm | 25mm | 35mm | 40mm | 50mm |
| Mild Steel | 10mm | 12mm | 14mm | 18mm | 25mm | 35mm | 50mm | 60mm | 80mm |
| Aluminum | 3mm | 4mm | 5mm | 6mm | 12mm | 20mm | 35mm | 40mm | 50mm |
| Brass | 2mm | 3mm | 4mm | 5mm | 10mm | 18mm | 20mm | 20mm | 20mm |
| Copper | 3mm | 3mm | 4mm | 5mm | 10mm | 18mm | 20mm | 20mm | 20mm |
Samples
Warranty&Service
1. Warranty for 3years of whole machine;.
Laser source, Air compressor, Stabilizer warranty for 2 years;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
