Tube Laser Cutting Machines 3-Chuck of Stainless steel Pipe Cutting MR6020FT
Cutting Size:
L=6.3m/φ15-230mm
Laser Power:
1kw-6kw
MAX Speed:
120m/min
Price:
$65500-$18800
Option Size:
L=9m/φ15-350mm, L=12m/φ15-350mm
Product Presentation
Tube Laser Cutting Machines 3-Chuck of Stainless steel Pipe Cutting MR=6020FT Description
MR-6020FT is a high-end 3-chuck laser pipe cutting machine. The biggest advantage is that it has zero tailing material. It is suitable for cutting the entire length of long pipes and cutting heavy-duty heterosexual pipes.
The extended lengths are 9 meters, 12 meters, and 15 meters.
Tube Laser Cutting Machines 3-Chuck of Stainless steel Pipe Cutting MR=6020FT Video
Machine Details
Metal Plate Welded Bed
◆ 20mm metal plate; Equal-strength welding; Plug-in structure that is strong and stable for heavy tubes cutting.
◆ Heat treatment to release inner strength, Very strong and will not deform for 30 years
Guide Rail with Positioning Block
◆ Manganese steel guide, High moving speed, High moving accuracy

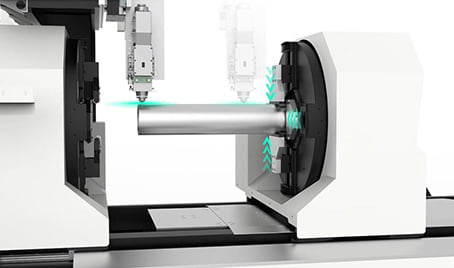

Three-Chuck
◆ Auto centering, Quick clamping 3-point, correcting pipe bending, preventing inertial swing.
◆ One-key self-centering, fast clamping, fast cutting, three-point clamping, correcting pipe bending, preventing inertial swinging, ensuring cutting accuracy, chuck clamping force can be adjusted according to pipe wall thickness, convenient and efficient, rear chuck The braking is fast and the pipe cutting accuracy is guaranteed.
ZERO WASTE - No tailing material
◆
The front, middle, and rear three sets of chucks can all move in the Y-axis direction. For short-sized pipes, the rear chuck can be connected to the inside of the middle chuck for cutting. The three sets of chucks are matched with different processes to truly achieve zero tailings.

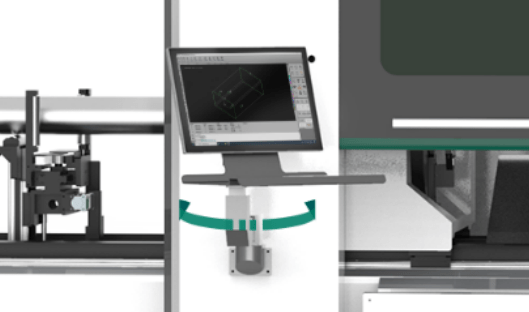

Rocker display
◆ The direction can be adjusted according to the needs, so that the operator can observe the cutting state while operating.
◆ The ultra-high-definition 21.5-inch display screen, with a horizontal screen design, is more suitable for the operating system and easier to operate, bringing users a more user-friendly design and user experience.

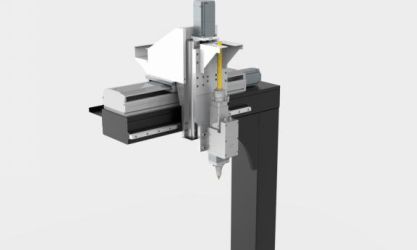

Gantry designed
◆ The X-axis of the machine tool uses a high-precision linear module to ensure ultra-high machining accuracy. The closed casing can prevent foreign objects from entering the body, effectively reduce the pollution and damage to the machine tool, and prolong the service life of the equipment.
High-precision Transmission system
◆ High-precision transmission structures such as grinding-grade helical gear racks, linear guides, and ball screws are used
Auto focus 3D laser head
◆ The laser head has a built-in motor drive unit, and users can continuously adjust the focus through program settings to quickly punch thick plates and automatically cut plates of different thicknesses and materials.
◆ 3D model is suitable for Various tube shapes cutting, Angle steel, H steel, triangle ect.
Machine Parameter
No.
Item
Parameter
1
Machine Model
MR-6020FT/9035FT/12035FT
2
Tube Cutting Size
L=6.36M, φ15-230mm/φ15-350mm
3
Repeat Positioning Accuracy
±0.05mm
4
Accuracy Of Positioning
±0.05mm
5
Max Movement Speed
110m/min
6
Max Rotary Speed
110r/min
7
Max Acceleration
1.5G
8
Laser Power
3kw-12kw
9
Chuck max Loading
300kg/900kg
11
Machine Size
11700*1500*2300mm
12
Machine Weight
5800kg/8100kg
Samples
Packages
Warranty&Service
1. Warranty for 3years of whole machine;.
Laser source, Air compressor, Stabilizer warranty for 2 years;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
5. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
