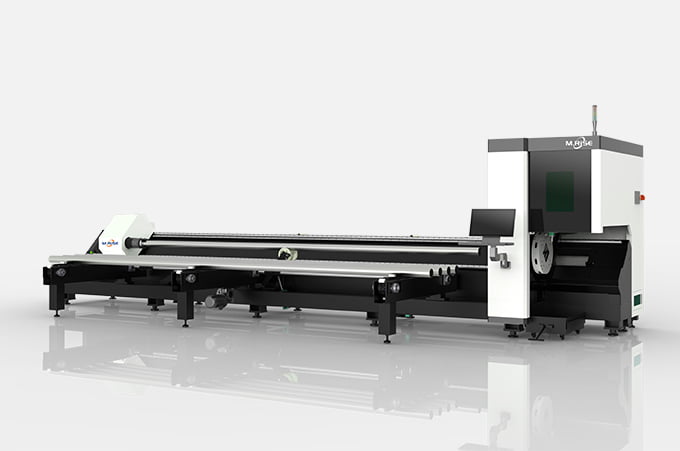

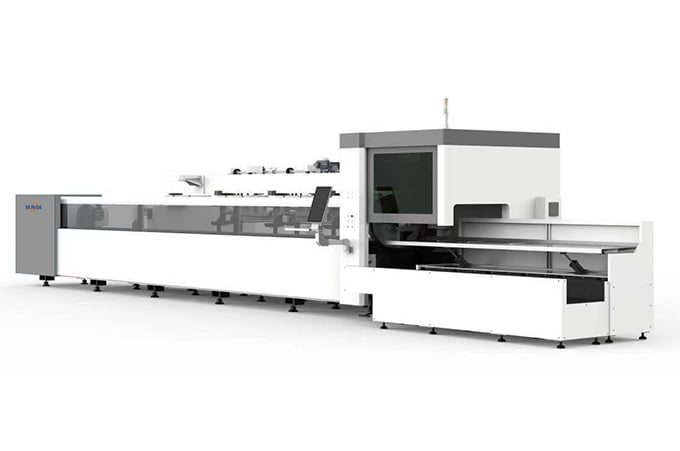

Fully Automatic Tube Laser Cutting Machine
Fully Automatic Tube Laser Cutting Machine
Cutting Size:
L=6.2m/φ10-230mm
Laser Power:
3kw-12kw
MAX Speed:
110m/min
Price:
$45500-$13800/set
Option Size:
L=9m/φ15-350mm, L=12m/φ15-350mm
Product Presentation
Machine Description
Fully Automatic Tube Laser Cutting Machine is a high-end heavy-duty pipe cutting machine with two chucks, suitable for cutting oversized steel pipes. In particular, it fully supports the cutting of channel steel, angle steel, I-beam and other profiles; it can realize the cutting of ultra-long pipes, such as 12-meter loading and 6-meter unloading.
Machine Video
Machine Details
Integrated Machine Bed
◆ 20mm metal plate; Equal-strength welding; Plug-in structure, Very strong and stable for heavy tubes
◆ Heat treatment to release inner strength, Very strong and will not deform for 30 years

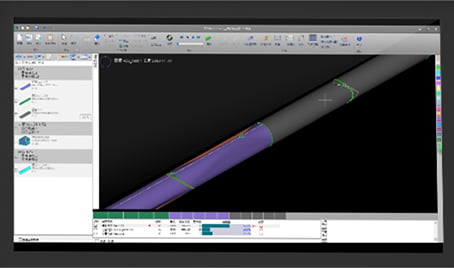

Updated BUS Controller
◆ Square pipes, round pipes, racetrack-shaped, elliptical as stretched pipes, angle steel, channel steel.
◆ The bus control system provides an efficient, simple, and intuitive operating experience for fiber laser cutting machines, allowing even people who are unfamiliar with the industry to easily get started and achieve precise cutting tasks.
3.Following Support with auto centering function
◆ The auto correction device clamps the pipe and automatically aligns it with the center of the chuck, and the chuck accurately clamps and feeds the material.
◆ Pneumatic drive, Auto correction, Auto centering, to ensure the support working with tube together all the way. Stable of cutting and high precision.

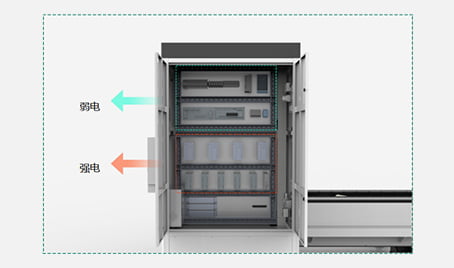

4.Partitioned electric control cabinet-Separation of strong and weak electricity
◆ It ensures the stable operation of various parts of the electronic control system and prevents errors or failures caused by interference.
◆ This separation design helps reduce the risk of electric shock and ensures the safety of operators and equipment
◆ When repairing or replacing equipment, it does not involve handling high voltage and low voltage at the same time, which improves the efficiency and safety of repair. At the same time, extend equipment lifetime.
Removable 3D laser head
◆ The laser head has a built-in motor drive unit, and users can continuously adjust the focus through program settings to quickly punch thick plates and automatically cut plates of different thicknesses and materials.
◆ 3D model is suitable for Various tube shapes cutting, Angle steel, H steel, triangle ect.
Option fully automatic loading system
◆ We provide fully automatic loading device and semi-automatic loading device as options for this machine.
◆ The loading time is short, with an average of 40s-1min per pipe, which improves work efficiency and greatly reduces the operator’s work intensity.
◆ The feeding work is continuous and stable, which facilitates pipe cutting.
Machine Parameter
No.
Item
Parameter
1
Machine Model
MR-6020HT/9035HT
2
Tube Cutting Size
L=6.3M, φ15-230mm/φ15-350mm
3
Repeat Positioning Accuracy
±0.05mm
4
Accuracy Of Positioning
±0.05mm
5
Max Movement Speed
110m/min
6
Max Rotary Speed
110r/min
7
Max Acceleration
1.5G
8
Laser Power
3kw-12kw
9
Chuck max Loading
300kg/900kg
11
Machine Size
11700*1500*2300mm
12
Machine Weight
5800kg/8100kg
Samples
Packages
Warranty&Service
1. 3-Year Warranty for the Entire Machine;
2-Year Warranty for Laser source, Air compressor, Stabilizer;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
