Fiber Laser Cutting Machine For Sale

Fiber Laser Cutting Machine MR-1530HP for metal plate

Cutting Size:

3000*1500mm

Laser Power:

3kw-20kw

MAX Speed:

120m/min

Price:

$28500-$98800/set

Option Size:

4000*2000mm, 6000*2000mm, 8000*2500mm, 12000*25000mm

Metal Plate Laser Cutting Machine MR-1530HP Description

MR-1530HP Laser Cutting Machine designed by double exchange worktable with full cover to protect from dust and smoke.

The high speed exchange of pallet makes cutting works high efficient. That’s the good choice to the customers who have a big quantity cutting works everyday.

The machine can be equipped with a larger worktable, such as 4000*2000mm, 6000*2000mm, 8000*2500mm, 12000*2500mm.

Metal Plate Laser Cutting Machine MR-1530HP Video

high power fiber laser cutting machine
Play Video about high power fiber laser cutting machine

Machine Details

Machine Details

Intelligent Exchange Worktable

Double-worktable enables rapid interchange-10 seconds, saving loading and unloading time

Machine Details

Heavy duty machine base

Machine base welded by 20mm steel plate with heat treatment to release the internal stress. The load-bearing capacity is larger, and it is stronger and less likely to deform.

Designed with fire-resistant insulation technology, better protection.

Zoned exhaust vacume worktable for dust proof Details

Zoned negative pressure exhaust and dust removal

Designed with air extraction structures on both sides of the bed, large-diameter and multi-zone optimized upgraded air ducts significantly improve the effectiveness of air extraction compared to a center extraction structure.

Machine Details

YASKAWA Servo Motor and Driver

The fiber laser cutting machine matches with YASKAWA servo motor and driver, with many functions, including auto-adjusting, position/speed control and internal positioning sequences etc.

Laser head Details

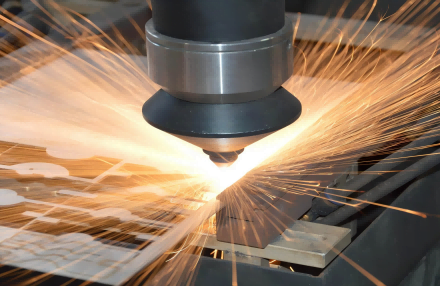

Intelligent Auto Focus Laser Head

Lightweight design, fast acceleration, the monitoring data can be read on the mobile terminal or CNC system, autofocus is simple, fast and more precise, distance sensor 0 drift measurement is more accurate, CoolTec cooling technology quickly cools the sheet metal surface temperature, the airtight light path protects against dust falling and protects the lens for continuous monitoring.

MAX Laser source Machine Details

High power laser Source

Integrates high power, compact size, user-friendly
control, high-quality beam quality, and high light
conversion efficiency;

Single-pump control technology can be used to achieve independent control, and it can still run after quickly shutting down a single abnormal pump source;

Optoelectroni separation design is adopted, and the
optical path or circuit module can be quickly replaced on site.

Machine Parameter

No.

Item

Parameter

1

Machine model

MR-1530HP

2

Working Size

3000*1500mm

3

Maximum Acceleration

1.5G

4

Positioning Accuracy

±0.03mm

5

Repeat Positioning Accuracy

±0.02mm

6

Laser Power

3kw, 6kw, 12kw, 20kw

7

Max Loading

1440kg/worktable

8

Machine Size

8240×2690×2320MM

Samples

Fiber laser cutting machine for metal plate samples

Packages&Shipping

laser cutting machines package /shipping

Warranty&Service

1. Warranty for 3years of whole machine;.

Laser source, Air compressor, Stabilizer warranty for 2 years;

If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.



2. Whole lifetime and 24 hours online service.

Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.



3. The machine has undergone strict quality inspection and debugging before shipment.

And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.



4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.



5. We provide the consumable parts at an agency price.
