Automatic Platform CNC Laser Welding Machine For Sale

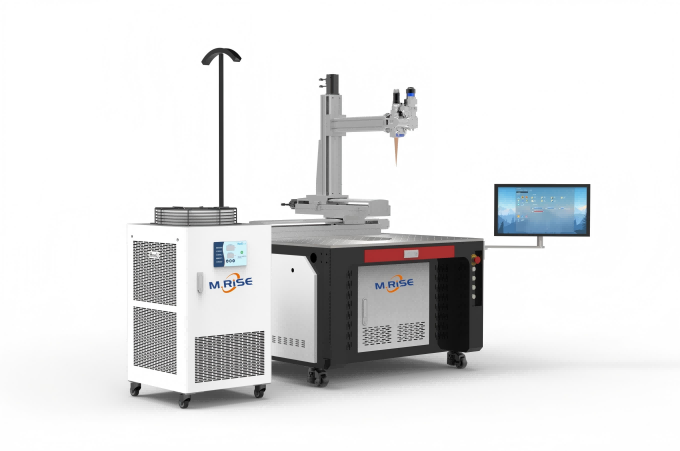

Fully Automatic CNC Platform Laser Welding Machine
Operate Mode:
Automatic CNC Welding
MAX Precision:
0.01mm
MAX Speed:
120mm/s
Working Area:
480mm×280mm×460mm(Customized)
Applicable Materials:
S.S, M.S, Aluminum, Copper, Alloys
Product Presentation
Fully Automatic CNC Platform Laser Welding Machine Description
The fully automatic CNC platform laser welding machine is highly flexible, equipped with a large working area XYZ axis, precise control of power, frequency and other parameters, and can perform consistent and fine welding on parts to meet various welding needs. It can also be equipped with an optional CCD camera monitoring system for convenient observation and precise positioning, especially suitable for applications requiring strict tolerances and complex welding requirements.
Features of automatic cnc platform laser welding machine.
1 . Precise control of heat output: Laser welding technology uses the high energy density of the laser beam to control the heat input very accurately, which makes the welding process very efficient and precise. The laser beam can be focused in a very small area, making the heat concentrated and controllable, thereby achieving fine adjustment of the welding process. This precise heat control helps reduce the risk of heat affected zone (HAZ) and material deformation during welding；
2. Efficient continuous welding: The platform-type automatic laser welding machine can achieve continuous laser output and fast welding speed, which is suitable for mass production or scenes requiring long-term welding.
Intelligent design, fully automatic welding, to meet your various needs;
3. Perfect weld: It can achieve seamless welding, ensure the strength, uniformity, flatness and beauty of the weld seam of the welded joint, less polishing and grinding, and avoid welding defects that may be caused by traditional welding methods;
4. The system is easy to operate, and the operating system supports a variety of different pendulum types, automatic wire feeding and other functions;
5. Maintenance-free: no equipment wear or consumables, stable performance.
Fully Automatic CNC Platform Laser Welding Machine Video
Machine Details
Imported transmission modules on X,Y,Z axis for large-sized workpieces
◆ The X, Y, and Z axes in the platform laser welding machine are used to precisely control the position and movement of the welding head, ensuring a high-precision welding process.
◆ X-axis: responsible for controlling the left and right movement of the welding head in the horizontal plane. It allows the welding head to be positioned along the length of the workpiece, thereby achieving precise transverse welding;
◆ Y-axis: responsible for controlling the movement of the welding head in the longitudinal (front and back) direction, and can achieve complex welding paths in conjunction with the X-axis;
◆ Z-axis: controls the up and down movement of the welding head, usually used to adjust the focal length or welding depth to cope with materials of different thicknesses;
◆ The precise control of these axes enables the platform laser welding machine to handle complex three-dimensional welding tasks, especially for parts that require high precision and complex shapes.
Intelligent control system
◆ The system adopts PLC control, the welding process is fully automated, reducing the intensity of manual operation, and can run continuously, reducing the impact of human factors on welding quality, and improving the overall welding quality and consistency.
◆ It supports a variety of different swing types, automatic wire feeding and other functions, and the system is easy to operate.
There is a process parameter library stored in the system, and each mode corresponds to different parameter settings.
◆ After saving, you can directly select the corresponding mode when you use it next time without setting the parameters again.
Auxiliary rotary
◆ The rotary axis is used to achieve the rotation of the workpiece to provide multi-angle contact and welding during the welding process.
◆ The rotary axis continuously rotates the metal tube, allowing the laser welding head to form an even weld around the entire circumference, ensuring consistent weld quality, especially for circular or complex geometries.
CCD system
◆ The CCD camera is equipped with a blue light to make the welded parts clearly visible;
◆ The visual system monitors and adjusts the welding position in real time to improve welding accuracy and can help automatically identify welding points;
◆ It automatically adjusts the spot size and adjusts the welding parameters according to the product characteristics, which can detect the welding quality in real time, reduce human interference, and significantly improve the accuracy and efficiency of the automated welding process.
Machine Parameter
No.
Item
Parameter
1
Laser Power
1500w/2000w/3000w
2
Laser Source
Raycus/MAX/IPG/JPT/BWT
3
Worktable Size
800*1000mm（ customizable ）
4
X axis, Y axis, Z axis working stroke
480mm×280mm×460mm（ customizable ）
5
Rotation Axis Diameter
100mm（ customizable ）
6
X, Y, Z positioning accuracy
±0.025mm
7
X, Y, Z repeat positioning accuracy
±0.02mm
8
Cooling Type
Water Cooling
9
Working Environment Temperature Range
0~40℃
10
Welding speed
0-120mm/s
11
Welding material thickness
≤6mm
12
Volatege
380V/50Hz, 380V/60Hz
Fully Automatic CNC Platform Laser Welding Machine Application

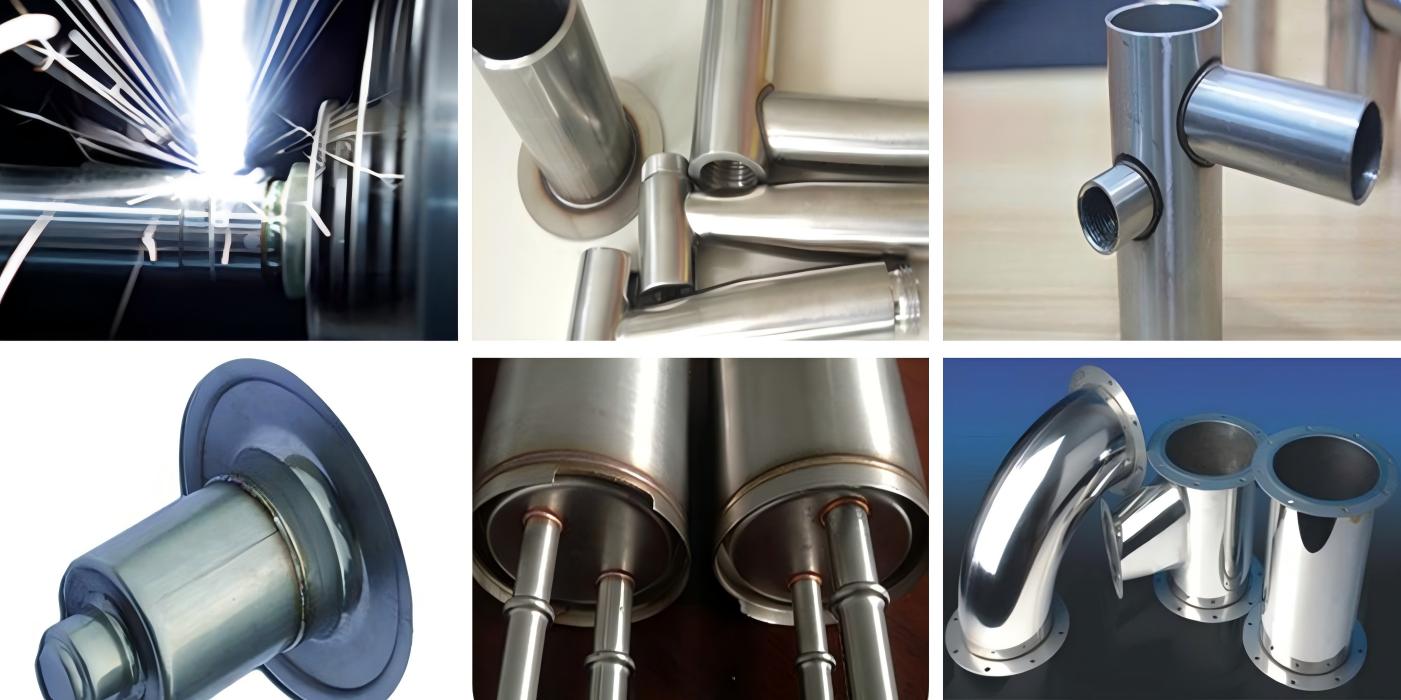

Fully automatic CNC Plateform laser welding machine can meet the welding of various metals, such as gold, silver, copper, aluminum, stainless steel, titanium alloy and other materials.
It is widely used in automobile manufacturing, aerospace, aviation, shipbuilding, lithium battery industry, machinery manufacturing, furniture industry, sheet metal processing industry, kitchenware, medical treatment, etc.
Its versatility and automation make it an ideal choice for various industrial applications.
Fully Automatic CNC Platform Laser Welding Machine
The platform type automatic laser welding machine can realize seam welding, T-type welding, lap welding, edge welding, stack welding, fillet welding and rotationally symmetrical component welding.
Comparison of Different Welding Methods
| Feature | CNC Platform Automatic Laser Welding | TIG Welding | MIG Welding | Stick Welding |
|---|---|---|---|---|
| Operate Mode | Automatic welding | Manual welding | Manual welding | Manual welding |
| Welding Speed | High speed and efficiency | Slower, high precision | Faster than TIG, but less precise | Moderate speed varies with skill |
| Precision | High precision with a double wobble mechanism | Very precise, suitable for thin materials | Good precision, less than laser | Lower precision, suitable for thick materials |
| Heat Affected Zone | Minimal heat affected zone | Bigger, potential for warping | Moderate heat affected zone | Bigger, cause significant warping |
| Material Versatility | Effective for various metals and alloys | Excellent for thin and high-quality metals | Versatile, suitable for various materials | Limited to certain materials and thicknesses |
| Post-Weld Cleanup | Minimal, clean welds | Requires cleanup and finishing | Moderate, depending on weld quality | Significant cleanup is needed, and more spatter |
| Operational Cost | Generally higher initial cost, low running costs | Moderate equipment cost, consumables needed | Lower initial cost, higher consumables cost | Lower initial cost, high consumables, and maintenance cost |
| Skill Level Required | Requires specialized training | High skill level needed for best results | Moderate skill level, easier to learn | Requires significant skill and experience |
| Safety | Requires proper eye protection and safety measures | Requires safety gear to protect from UV and heat | Requires safety gear to protect from spatter and UV | Requires protective gear and careful handling |
