Large Press Brake
Bending Length:
3200mm, 4000mm, 5000mm
Weight:
200Ton, 300Ton, 400Ton, 500Ton
Price:
$18500-$85800
Option Bending Weight:
250Ton, 600Ton
Product Presentation
Press Brake Description
Large Press Brake is mainly used to bend a variety of metal sheets. Bending machines have a wide range of uses and excellent performance characteristics. Users only need to equip the bending machine with various molds to bend metal sheets into workpieces of various shapes. When equipped with corresponding equipment, it can also be used for punching holes.
Bending machines can be used in different factories such as electrical appliances, automobiles, shipbuilding, and aircraft to process workpieces of different specifications and have high production efficiency. Especially CNC bending machines have many characteristics such as high precision, simple and fast operation, and stable performance. They are deeply Popular with different customers.
Press Brake Video
Press Brake Details
The machine base is in an overall welded and overall processed structure
◆ ANSYS finite element analysis software is applied to main parts of the machine body for analysis which has ensured the reliability of machine and the precision of entire machine.
Netherlands DELEM, Swiss CYBELEC or Italian ESA Companies
◆ Achieve the functions of graphic programming for bending
◆ Angle compensation for angle amendment automatic calculation
◆ Adjustment of bending pressure, automatic calculation of compensation for workbench distortion
Backgauge adopt grinding platedeslgn,high regulation accuracy.
◆ The position of the back gauge and the slider stroke control by the servo motor through the transmission device, which is displayed at numerical control screen, and realize the automation of multi-work step and mutil-workpieces.
Quick clamp device of tools
◆ The segmented mold clamp makes it easy to bend metal sheets of different lengths
◆ Loading and unloading molds is easier, one-click operation

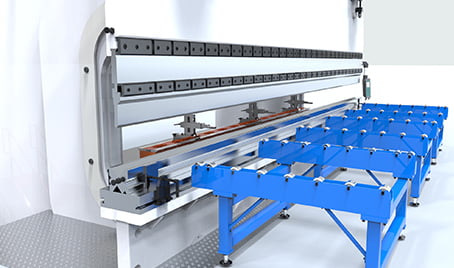

Auto Loading Device in Front of the Machine

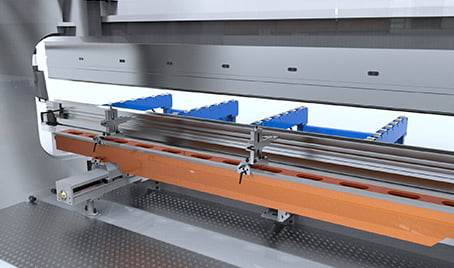

Auto Loading Device behind of the Machine
Main Servo Motor as option
Laser Protection as option
Press Brake Parameter
No.
Item
Parameter
1
Machine Model
MR-200Ton/3200, 300Ton/4200mm, 400Ton/6200mm
2
Bending Size
3200mm, 4200mm, 6200mm
3
Nominal Force
2000KN, 3000KN, 4000KN
4
Poles Distance
3100mm, 4800mm
5
Throat Depth
350mm, 400mm, 500mm
6
Slider Travel
200mm, 300mm
7
Worktable Height
800mm, 850mm, 920mm
8
Main Motor Power
30kw, 37kw. 45kw
9
Back Gauge X-axis Travel
600mm, 800mm
11
Back Gauge X-axis Speed
100mm/s
12
Machine Dimension
3500×1800×2730mm, 4300×2080×2730
Press Brake Samples
Press Brake Packages
Warranty&Service
1. 3-Year Warranty for the Entire Machine;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
