Affordable Sheet and Tube Laser Cutting Machine
Affordable Sheet and Tube Laser Cutting Machine
Cutting Size：
3000*1500mm/φ16-220mm
Laser Power:
1kw-12kw
MAX Speed:
120m/min
Price:
$28500-$95800/set
Option Size:
4000*2000mm, 6000*2000mm, 8000*2500mm 3m Length
Product Presentation
Machine Description
Affordable Sheet and Tube Laser Cutting Machine combines plate and tube processing function into one set, supporting cutting job of plate metal with working area 3000mm×1500mm and φ16-φ220mm of pipe cutting.
This machine is designed for dual -purpose cutting job with perfect cutting effect. It is widely used in stainless steel processing industry which serves for plate metal cutting and sports equipment manufacturing.
Machine Video
Machine Details

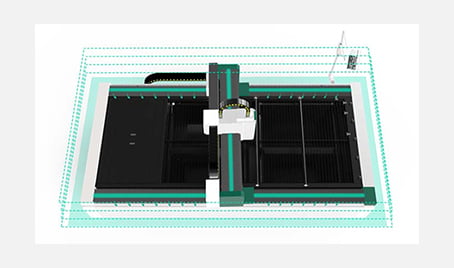

Combined function-Tube cutting and plate cutting
◆ One machine can be used for both pipe cutting and plate cutting. Compared with professional pipe cutting machines and plate cutting machines, it has comprehensive functions, smaller footprint, cost savings.
◆ Suitable for some factories with limited budget and just starting up.

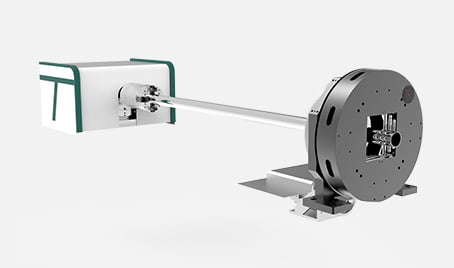

Full stroke pneumatic chucks
◆ With the function of Auto centering, Adjustable pressure, very high cutting precision. Completely the same with professional tube laser cutting machine.

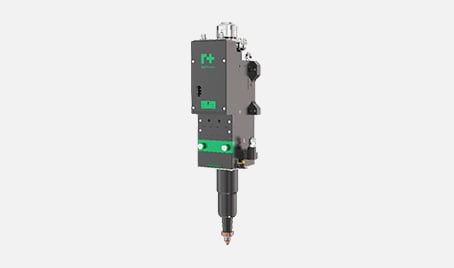

Auto Focus 3D laser head
◆ The laser head has a built-in motor drive unit, and users can continuously adjust the focus through program settings to quickly punch thick plates and automatically cut plates of different thicknesses and materials.
◆ 3D laser head is very suitable to cut irregular steel pipes, such as angle steel, H steel, triangular steel pipes, etc.
Intelligent central control lubrication
◆ Lubrication time and times can be adjusted through the central control system, comprehensive multi-point lubrication for guide rails, sliders, lead screws, racks, etc., and automatic return to collect waste lubricating fluid.

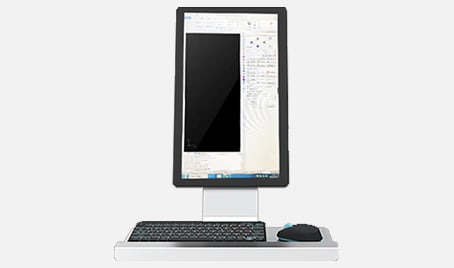

Intelligent control system
◆ General functions include graphics processing, parameter settings, custom cutting process editing, nesting, path planning, simulation, and cutting process control.
◆ Supports speed-dependent power adjustment and can set separate lead-in line speeds.
◆ The material process library function allows all process parameters to be saved for reuse of the same material.

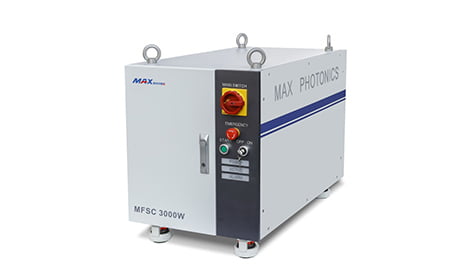

Famous Brand Laser Source
◆ It is a high-efficiency, high-beam-quality single-module fiber laser. Mainly used in piercing, cutting and welding fields.
◆ The advantages of MAX laser source is high beam quality, high power, high efficiency, high reliability and long lifetime.
Machine Parameter
No.
Item
Parameter
1
Machine model
MR-1530C/2060c
2
Plate Cutting Size
3000*1500mm/6000*2000mm
3
Tube Cutting Size
L=3m/6m, φ15-220mm
4
Positioning accuracy
±0.03mm
5
Repeat Repositioning Accuracy
±0.02mm
6
Acceleration
1.5G
7
Max moving speed
120m/min
8
Max table load
900kg/1300kg

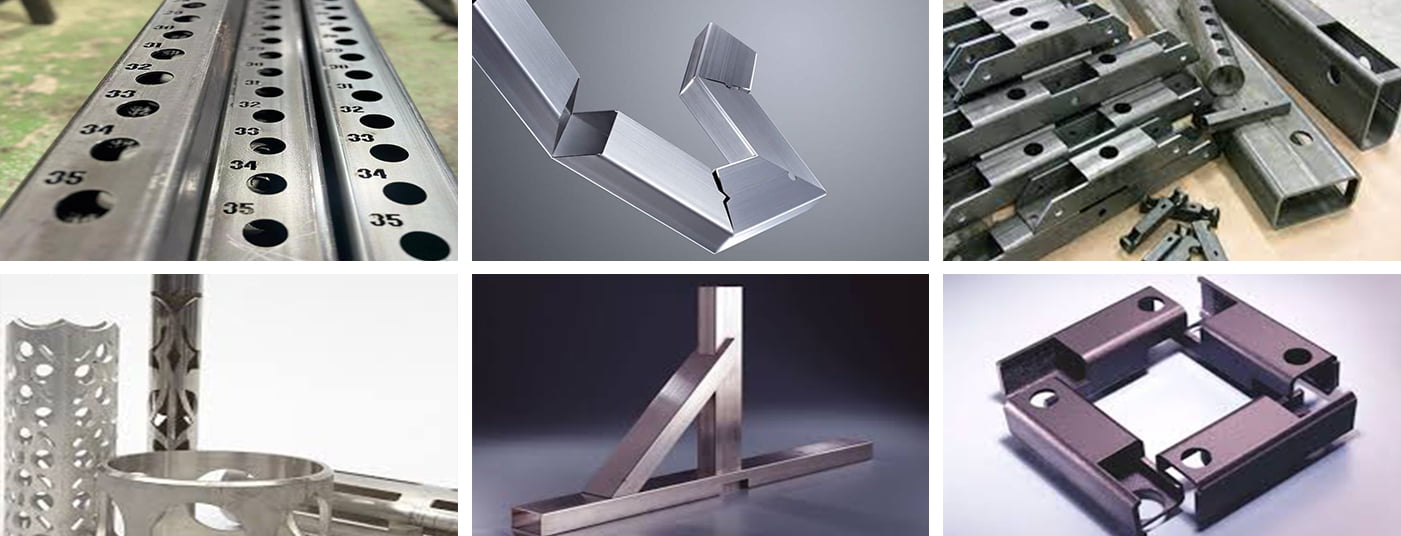

Samples
Packages
Warranty&Service
1. 3-Year Warranty for the Entire Machine;
2-Year Warranty for Laser source, Air compressor, Stabilizer;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
