1325 CO2 Laser Cutting Machine
1325 CO2 Laser Cutting Machine
Cutting Size:
1300*2500mm
Laser Power:
130w-500w
MAX Cutting Speed:
80mm/s
MAX Engraving Speed:
800mm/s
Price:
$4500-$8800
Product Presentation
Machine Description
1325 CO2 Laser Cutting Machine is a small portable modell machine for non-metal engraving and cutting.
Applicable for most materials, such as acrylic, double-color sheet, MDF, leather, fabric, leather, rubber, wooden boards, bamboo products, organic glass, , marble, jade, crystal, etc.
Machine Video
Machine Details

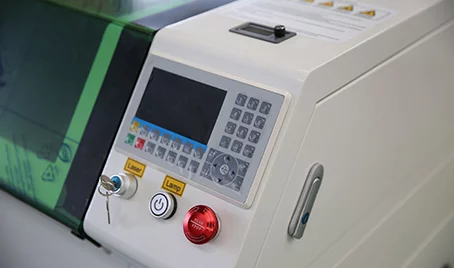

Professional Control System RD6445 Version
◆ It includs function of optimize cutting path automatically, it can arrange your different cutting designs, consecutively cut all curves fast.
◆ Support AUTOCAD, CORELDRAW,TAJIMA,PHOTOSHOPS, ect, easy to cooperate. format graphic supported: BMP, AI, PLT, DST, DXF, ect, combined with all CAD typest designs and output in time.
Up&down worktable
◆ The Z-axis move up and down automatically so that some thick materials are not difficult to process. It is also a necessary part to work together with a rotary.

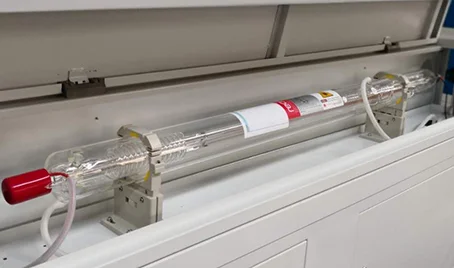

Famous Brand Laser Tube
◆ RECI Laser tube is famous of good quality and the best warranty

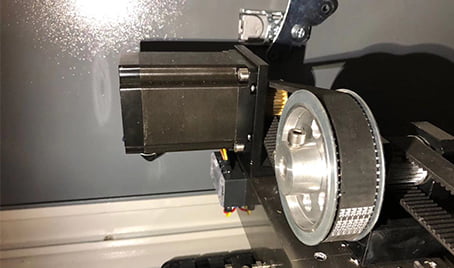

Leadshie Motor
◆ Step motor control is very stable and fast speed

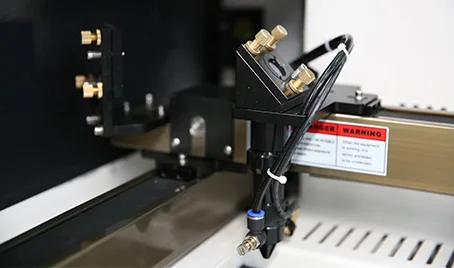

Professional Laser head
◆ Air blow function on the laser head to ensure no fire during cutting

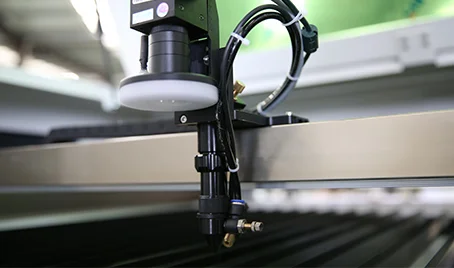

CCD Camera Option
◆ CCD camera for option, using for cut the mateirals after printed
Machine Parameter
No.
Item
Parameter
1
Machine Model
MR-1325/1530
2
Working Size
1300*2500mm/1500*3000mm
3
Laser tube power
130w/180w/300w/500w
4
Power Supply
AC220V±10% /50HZ , 110V±10%//60HZ
5
Graphic Format
BMP, PLT, DST, DXF, AI,CDR etc...
6
Compatible software
CorelDraw, PhotoShop, AutoCAD, TAJIMA
7
Min. Shaping Character
Letter 1.0 x 1.0mm
8
Machine dimension
3240 *2000 *1060 mm/3840 *2200 *1060 mm
9
Net Weight /Gross Weight
650kg/950kg-750kg/1100kg
10
Package size
3340*2100*1260mm/3950*2300*1260mm
Samples
Packages
Warranty&Service
1. 3-Year Warranty for the Entire Machine;
2-Year Warranty for Laser source, Air compressor, Stabilizer;
If any parts are damaged during the warranty period, we will repair or replace them with new ones free of charge.
2. Whole lifetime and 24 hours online service.
Free technical support to guide the customer by WhatsApp, Wechat, Skype, Viber, E-mail for installation, maintenance, repair and software update.
3. The machine has undergone strict quality inspection and debugging before shipment.
And we already gained CE, FDA, ISO certificates, ect. So that we can export to any countries and areas in the world.
4. We have manual instruction, Videosand CD/U disk for software installation,operation and machine’s using and maintenance.
5. We provide the consumable parts at an agency price.
Related Machines

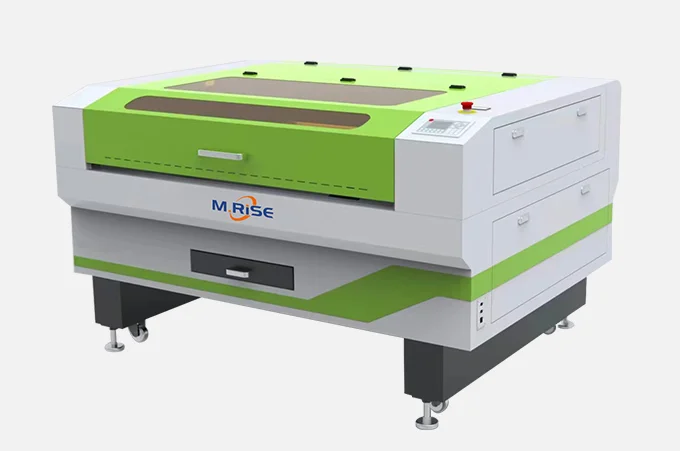

1390 CO2 Laser Engraver and Cutter
