Acoustic Panel Cutting Machine
Acoustic Panel Cutting Machine & Acoustic Panel Cutter for PET Felt and Sound Insulation Materials
Cutting Materials:
PET Felt Acoustic Panels, Polyester Fiber Acoustic Panels, Acoustic Foam Panels, Sound Absorption Panels, Fiberglass Acoustic Panels, Rock Wool Panels, EVA Foam Boards
Supply Capacity:
300 Sets Available per Month
Delivery:
7 Days
Certificate:
CE Certified for Quality and Safety
Warranty:
3-Year Warranty + Lifetime Free Technical Support
Payment Term:
Online (PayPal, Alibaba Trade Assurance) / Offline (T/T, Credit or Debit Card)
Product Presentation
Acoustic Panel & PET Felt Cutting Machine Description
Discover the M.RISE Acoustic Panel Cutting Machine, a high-performance CNC acoustic panel cutter designed for manufacturers producing sound absorption panels, PET felt panels, polyester fiber acoustic panels, and insulation materials.
Why Choose M.RISE for Acoustic Panel Cutting?
- Intelligent Control & High Efficiency: Our CNC system enables one-click pattern import, automatic tool configuration, and smart path optimization. The advanced CAM software increases production speed by 30%—ideal for mass production without compromising precision.
- Clean & Accurate: CuttingEquipped with a high-speed oscillating knife (200–500Hz) and premium linear guide rails, the machine ensures precise cutting accuracy up to ±0.1mm. Whether cutting polyester felt or fiberglass panels, the edges are smooth, clean, and burr-free.
- Multi-Material Compatibility: M.RISE’s acoustic panel cutter is specially engineered for cutting sound insulation materials from 0.5mm to 50mm in thickness.
- Supported materials include: PET / Polyester Fiber Acoustic Panels, PET Felt Panels, Glass Fiber Wool (Fiberglass), Cotton Fiber Panels, EVA Foam Boards, Mineral Wool / Rock Wool, Acoustic Fiberboards
- Customizable Tooling System: Handle complex designs with ease using multiple blade types: oscillating knife, pneumatic knife, bevel cutting tool, and creasing wheel. Easily perform straight cutting, beveling, grooving, and punching without tool change.
- Smart Nesting Software: Integrated auto-nesting software improves material utilization by over 10% compared to manual methods, significantly reducing waste and cutting costs.
- Simplified Operation & Reduced Labor: DependenceUser-friendly interface and automated controls make operation simple. One operator can manage multiple machines, reducing labor costs and improving workshop efficiency.
- Safety First: Anti-static systems, infrared safety sensors, and soft start technology ensure safe operation—even during high-speed cutting.
Technical Advantages
- Cutting Speed: Up to 2500mm/s (depending on material thickness)
- Motor: Japanese Mitsubishi servo motor for reliable, stable operation
- Precision: Maintains cutting tolerance within ±0.1mm
- Energy-Saving: Variable frequency vacuum system saves 30% power consumption
- Smart Integration: Compatible with Industry 4.0 smart factory systems
- Designed for Modern Interior Needs
- With the growing demand for aesthetic and functional acoustic panels, M.RISE provides a scalable and intelligent cutting solution to meet customized design requirements. From intricate patterns to large-scale production, our system is the ideal choice for: Acoustic Design Studios, Interior Decoration Companies, Soundproofing Manufacturers, Acoustic Panel Suppliers.
Acoustic Panel Cutting Machine Details
EOT+Degress Cut Head+Creasing Wheel
◆ The EOT for fast speed cutting.
◆ The Creasing Wheel is working for sound insulation creases.
◆ Degree-cut Head is adjustable groove angles (0°, 15°, 22.5°, 30°, 45°) for display structures
Option Punching Tool
◆ Punching tool is used for puching holes on any materials, such as gasket, leather, fabric, carpet, corrugated paper, offset paper, grey board, rubber, honeycomb board, PP, PE, and PVC)
CNC Control System
◆ Intuitive Touch Screen Control for Efficient Operation
◆ M.RISE CNC cutting machines feature an easy-to-use touchscreen control system, allowing operators to quickly set cutting parameters and manage production tasks.
- User-friendly CNC interface
- Multi-language support for global operation
- Easy parameter adjustment and machine control
- Stable performance for industrial cutting applications
Panasonic Servo Motor & High-Precision Drive System
◆ M.RISE CNC cutting machines are equipped with reliable Panasonic servo motors and drivers to ensure smooth movement, accurate positioning, and consistent cutting performance.
- Panasonic servo motor and driver system
- Fast response with high-speed motion control
- Stable operation for continuous industrial production
- Maximum cutting speed up to 1600mm/s

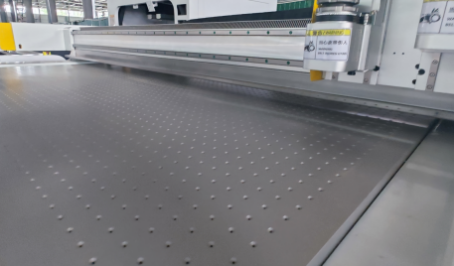

Aluminum Vacuum Table
◆ The high-strength aluminum vacuum table provides reliable material hold-down during cutting.
◆ Zoned vacuum control securely fixes flexible materials, helping maintain stability, accuracy and clean cutting quality.

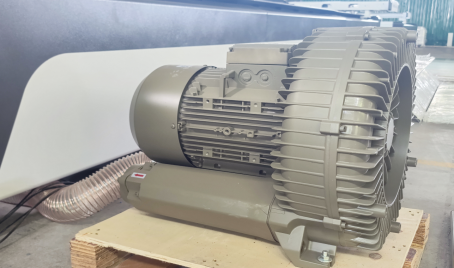

High-Performance Vacuum Blower
◆ The high-performance vacuum blower works with independently controlled vacuum zones to deliver strong, consistent material hold-down for stable and accurate cutting.
Zoned Exhaust System
◆ The platform is divided into several areas for ventilation work to ensure that the adsorption platform works well during cutting.
High-density Felt Countertops
◆ The felt contains metal wire, suitable for automatic feeding table and durable very much
Big Camera for Printed Mateirals Cutting
◆ If The camera is using for printed materials cutting.
◆ This big camera can recognize graphics and generate drawings, transmit them to the control system, and then perform precise cutting.
Projector as Option
◆ Using digitalized production equipment, you can produce high-quality products, control and reduce waste based on demand.
◆ For more precise cutting, the projector can project the drawing onto the material to be cut.
Acoustic Panel Cutting Machine Parameter
No.
Item
Parameter
1
Brand
MRISECNC
2
Series
MDC Series
3
Model
MDC-1625
4
Category
Digital Cutting System
5
Manufacture
Jinan M.RISE Machinery Equipment Co.,Ltd.
6
Cutting Size
1600*2500mm(63 x 98.4''), 1800*2500mm(70.9 x 98.4''), 2100*3000mm(82.7 x 118.1'')
7
Cutting Speed
100-1600mm/s
8
Cutting Thickness
0.1-100mm (Adjustable based on materials and requirement)
9
Cutting Accuracy
±0.01 mm
10
Positioning Accuracy
±0.01 mm
11
Cutting Materials
Sound Insulation Cotton, Polyester Fiber Sound-absorbing Board, Sound-absorbing Panel, Adhesive Sound Insulation, Fabric Sound-absorbing Panel, Glass wool
12
Cutting Tools
Oscillating blade head, V-cut, Tangential Knife, Router, Kiss-cut, Creasing wheel, Milling head, Pneumatic Blade head, Marking pen, Punching, ect.
13
Power Supply
3-phase 380–400V / 50Hz (Standard) Optional: 220–230V / 50–60Hz according to customer requirements
14
Table Fixed Type
Vacuum worktable/Zoned adsorption platform
15
Rack and Linear Guide
Taiwan
16
Motor and Driver
Servo Type
17
Machine Base
Welded squre metal tube of heavy duty
18
Lubrication System
Automatic Lubrication
19
Control Software
Zhongrui
20
Support Files Format
PLT, AI, CDR, HPG, HPGL, ect.
21
Option Parts
Big Camera, Projector, Automatic deviation correction loading rack, film-secured cutting process for Multi-layer fabric cutting
GET A QUOTE
Talk to Expert and Get Tailored Cutting Solution Free
Help you to cut smarter, faster, and better
- Customer Story: Serbia Customer Luka
Serbia customer Luka purchased the M.RISE MR-1625 CNC Oscillating Knife Cutting Machine for packaging and advertising applications.
The machine provides high-precision cutting solutions for various flexible materials, including foam, EVA, cardboard, and composite materials. With its advanced oscillating knife technology, the CNC cutting system is also suitable for processing acoustic materials such as PET felt panels, polyester fiber acoustic panels, and sound insulation materials.
Equipped with multiple cutting tools including oscillating knife, pneumatic knife, drag knife, milling cutter, bevel cutting, creasing wheel, pen, and CCD camera system, the machine delivers clean and accurate cutting performance for different industrial applications.
Luka is highly satisfied with the cutting performance, versatility, and stability of the M.RISE CNC digital cutting system, which helps improve production efficiency and expand business capabilities.
WHAT OUR CUSTOMERS SAY
FAQs
- An Acoustic Panel Cutting Machine is a CNC digital cutting machine designed for accurately cutting sound absorption materials such as PET felt acoustic panels, polyester fiber panels, acoustic foam, fiberglass, and insulation materials.
- M.RISE CNC acoustic panel cutter uses an oscillating knife cutting system to achieve clean edges without burning, melting, or deformation.
The M.RISE Acoustic Panel Cutter is suitable for various acoustic and sound insulation materials, including:
- PET felt acoustic panels
- Polyester fiber acoustic boards
- Acoustic foam
- Sound absorption panels
- Felt insulation materials
- Fiberglass insulation
- Foam insulation boards
The CNC cutting system provides precise cutting for different thicknesses and designs.
Yes. The PET Felt Acoustic Panel Cutting Machine is specially designed for polyester fiber acoustic panels.
It can perform:
- Shape cutting
- Grooving
- Punching
- Customized pattern cutting
with high precision and consistent production quality.
Compared with manual cutting or traditional blade tools, the CNC Acoustic Foam Cutting Machine provides:
- Higher cutting accuracy
- Faster production speed
- Consistent results
- No mold required
- Less material waste
It is ideal for manufacturers producing customized acoustic foam products.
- Yes. The Sound Absorption Panel Cutting Machine can cut customized designs, irregular shapes, logos, and decorative patterns.
- With CNC control and digital drawing files, manufacturers can easily produce different acoustic panel designs.
- The M.RISE Acoustic Board Cutting Machine can process different thicknesses depending on material type and configuration.
- It is suitable for thin acoustic felt panels as well as thicker sound insulation materials used in industrial applications.
A CNC oscillating knife cutter is preferred for many acoustic materials because:
- No burning edges
- No smoke or fumes
- No material discoloration
- Cleaner cutting quality
It is especially suitable for PET felt, foam, and other flexible sound absorption materials.
Yes. M.RISE provides customized CNC cutting solutions according to:
- Material type
- Panel thickness
- Cutting size
- Production requirements
- Required tools (knife, grooving, punching, CCD camera)
